Automation Fan Electric Motor Flat Wire Winding Twisting Machine For Motorcycle Stator

Detalhes do produto:

Lugar de origem:	China
Marca:	Champypund
Certificação:	ISO9001:2015

Informações pormenorizadas

Lugar de origem:

China

Marca:

Champypund

Certificação:

ISO9001:2015

Nome:

Máquina de torção controlada por servo

Modo de operação:

Automação

Área de aplicação:

Motocicleta elétrica, estator fora de bordo

Método de torção:

Controle de servo

Sistema de controle:

Programa do PLC

Método de transmissão:

Triturador de precisão de múltiplas camadas de um estágio

Personalização:

Permitido

Pressão do ar:

(0,4-0,7) Mpa

Poder:

3,5kW

Tensão:

380V

Garantia:

12 meses

Destacar:

High Light

Destacar:

Automation electric motor coil winding machine

Motorcycle stator electric motor coil winding machine

Automation fan motor winding machine

Informações de negociação

Quantidade de ordem mínima:

1 conjunto

Preço:

negotiable

Detalhes da embalagem:

CASE DE PLYWOOD COM BAÇO DE PLÁSTICO OU OUTRAS embalagens adequadas ao transporte marítimo

Tempo de entrega:

4-6 semanas

Termos de pagamento:

L/c, t/t

Habilidade da fonte:

1 SET POR 4-6 SEMANA

Descrição do produto

Automation Fan Electric Motor Flat Wire Winding Twisting Machine For Motorcycle Stator

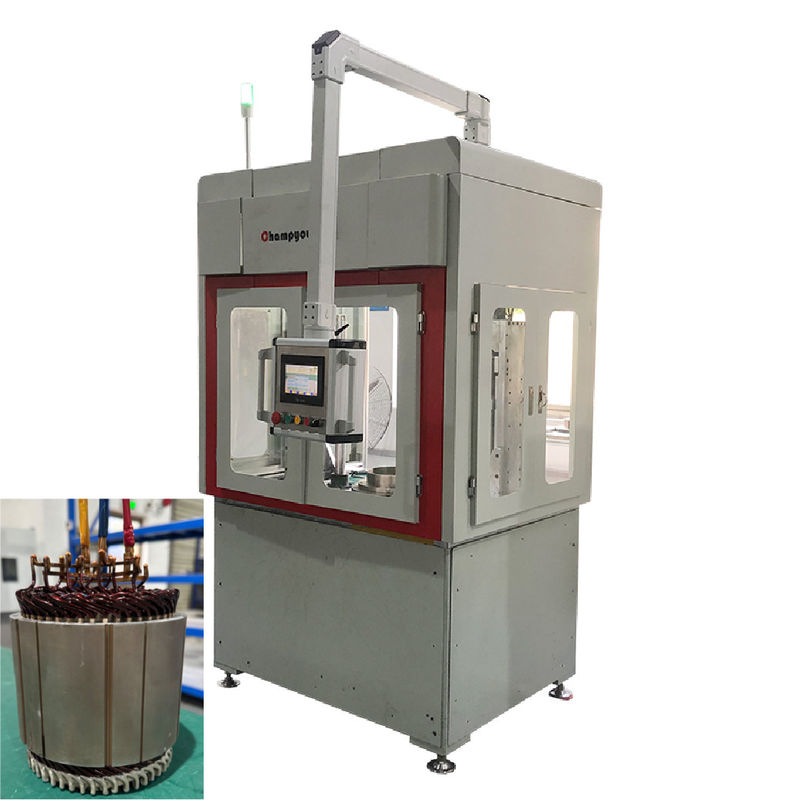

Flat Wire Stator Servo-Controlled Twisting Machine for Motorcycle, Outboard Stator

This servo-controlled twisting machine is engineered for precision twisting of stator coils in flat wire motors. Featuring servo motor control with adjustable settings via touch screen interface, it achieves precise twists up to ±45 degrees in both directions. PLC-controlled operation with LCD touchscreen interface ensures exact specifications are met for every product.

Key Specifications

Feature	Specification
Application Area	Motorcycle, Outboard Stator
Operation Mode	Automation
Control System	PLC Program
Air Pressure	0.4-0.7MPa
Voltage	380V
Power Consumption	Approximately 3.5 kW
Angle Control	±45 Degrees

Stator Specifications

Outer Diameter	Wire Layers	Stack Height
128mm	4 layers	125mm

Machine Advantages

Precision control of hairpin winding angles, turns and tightness for consistent flat wire windings
Adjustable settings and interchangeable tooling for various motor models
Automated process increases speed and efficiency while eliminating manual inconsistencies
Ensures reliable operation and extended motor life through consistent twist quality
Designed for easy integration into automated production lines

Production Line Overview

The Champyound motor stator line includes wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines and welding machines. Each machine operates independently or can be connected via conveyor belt.

Manufacturing Capabilities

Champyound provides comprehensive OEM/ODM services with experienced engineers, advanced machinery, and strict process controls to deliver optimal flat wire motor manufacturing solutions.

Research & Development

We offer technical consultancy and turnkey project services including motor costing, manufacturing technology, staff training, and complete production solutions.

Company Profile

Located in Suzhou's industrial hub, Champyound specializes in R&D, manufacturing and sales of flat wire motor machines for applications including home appliances, industrial motors, compressors, AC motors, servo motors and generators.
